Weather Radar Card
Gebruik je Buienradar? Maar wil je iets anders? De Weather radar card is een mooi alternatief.

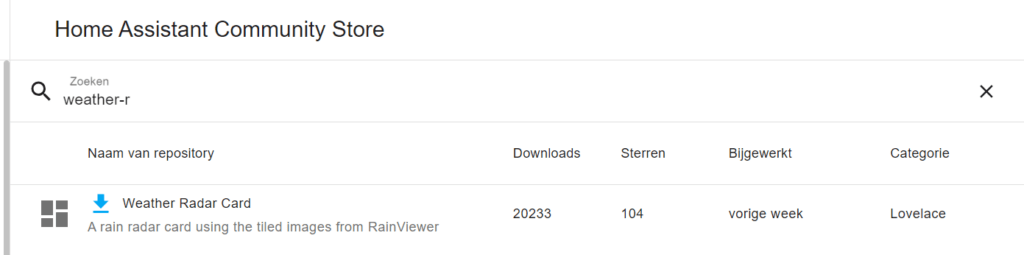

HACS installatie
Zoek naar weather radar card en installeer deze, herlaad HA en maak een nieuwe kaart.

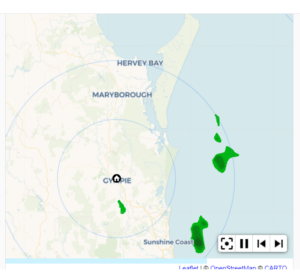

De weather kaart
Voorbeeld:
type: 'custom:weather-radar-card' frame_count: 10 center_latitude: -25.567607 center_longitude: 152.930597 marker_latitude: -26.175328 marker_longitude: 152.653189 show_marker: true show_range: true show_zoom: true show_recenter: true show_playback: true zoom_level: 8
Pas de latitude en longitude aan aan jouw locatie.
Via de visuele editor kun je de radar of landschap veranderen.
Radar: data source
|
Landschap stijl:
|
De totale kaart opties:
| Name | Type | Requirement | Description | Default |
|---|---|---|---|---|
| type | string | Required | must be 'custom:weather-radar-card' |
|
| card_title | string | Optional | The title to display on the card | no title displayed |
| data_source | string | Optional | Specifies whcih set of radar tiles to use | 'RainViewer-Original' see section below for valid values |
| map_style | string | Optional | Specifies the style for the map | 'light' see section below for valid values |
| zoom_level | number | Optional | The initial zoom level, can be from 4 to 10 | 7 |
| center_latitude | number | Optional | The initial center latitude of the map | the location of your HA instance |
| center_longitude | number | Optional | The initial center longitude of the map | the location of your HA instance |
| marker_latitude | number | Optional | The latitude for the home icon if enabled | the same as center_latitude |
| marker_longitude | number | Optional | The longitude for the home icon if enabled | the same as center_longitude |
| frame_count | number | Optional | The number of frames to use in the loop | 10 |
| frame_delay | number | Optional | The number of milliseconds to show each frame | 500 |
| restart_delay | number | Optional | The additional number of milliseconds to show the last frame | 1000 |
| static_map | boolean | Optional | Set to true to disable all panning and zooming | false |
| show_zoom | boolean | Optional | Show the zoom controls in the top left corner | false |
| square_map | boolean | Optional | Will keep the map square (not in panel mode) | false |
| show_marker | boolean | Optional | Show the home icon at the marker position | false |
| show_playback | boolean | Optional | Show the playback controls in the bottom right toolbar | false |
| show_recenter | boolean | Optional | Show the re-center control in the bottom right toolbar | false |
| show_scale | boolean | Optional | Show a scale in the bottom left corner | false |
| show_range | boolean | Optional | Show range rings around marker position | false |
| extra_labels | boolean | Optional | Show more town labels (labels become smaller) | false |
